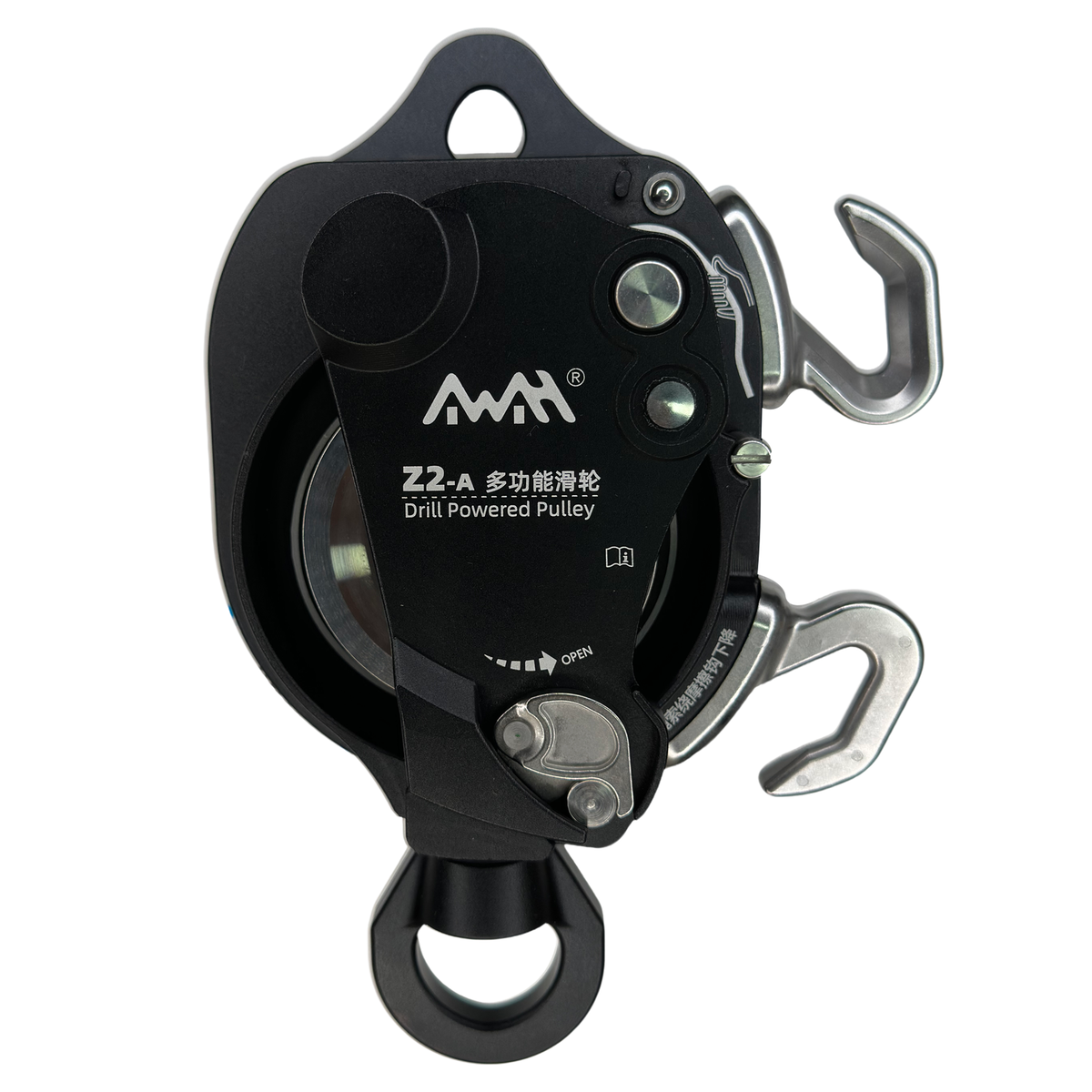

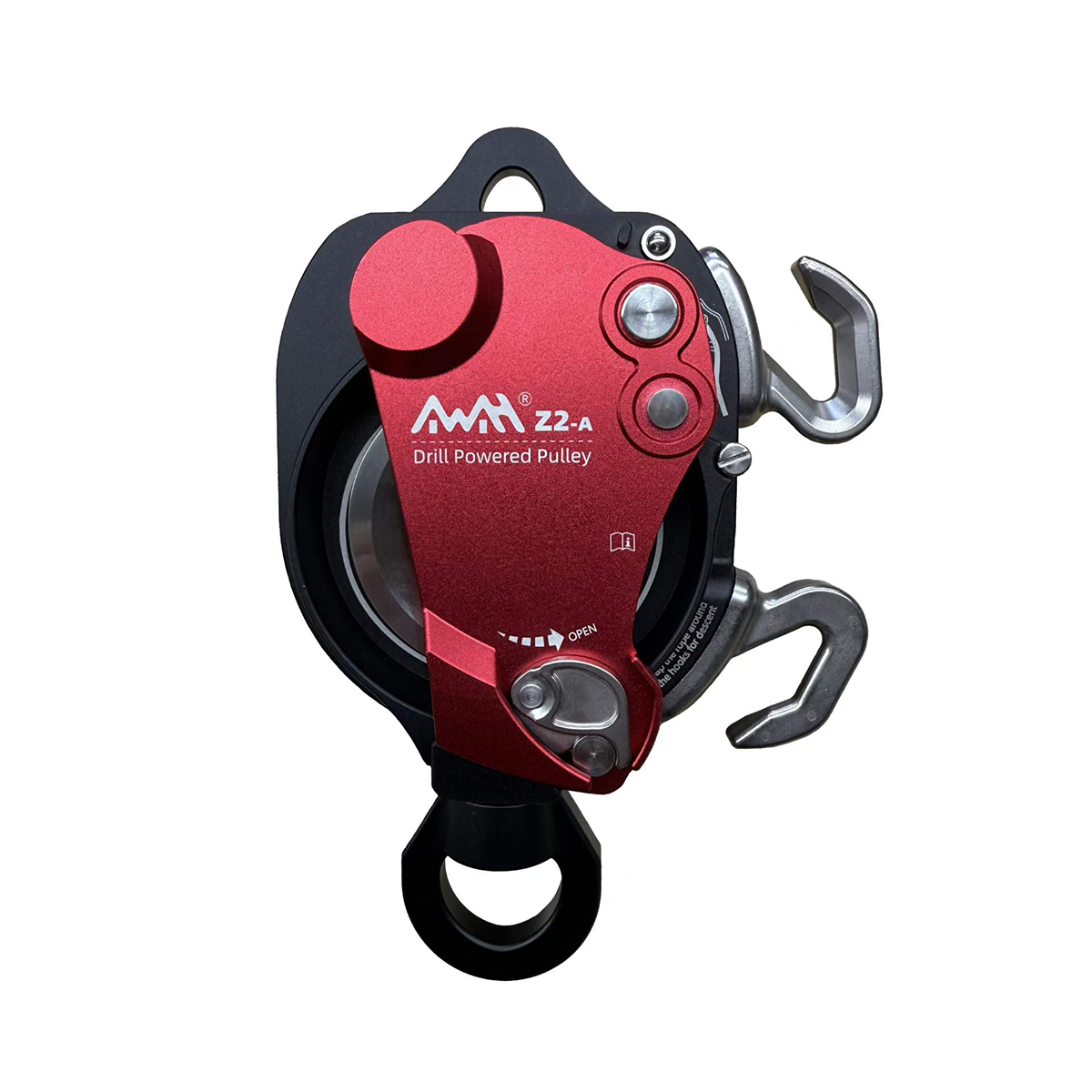

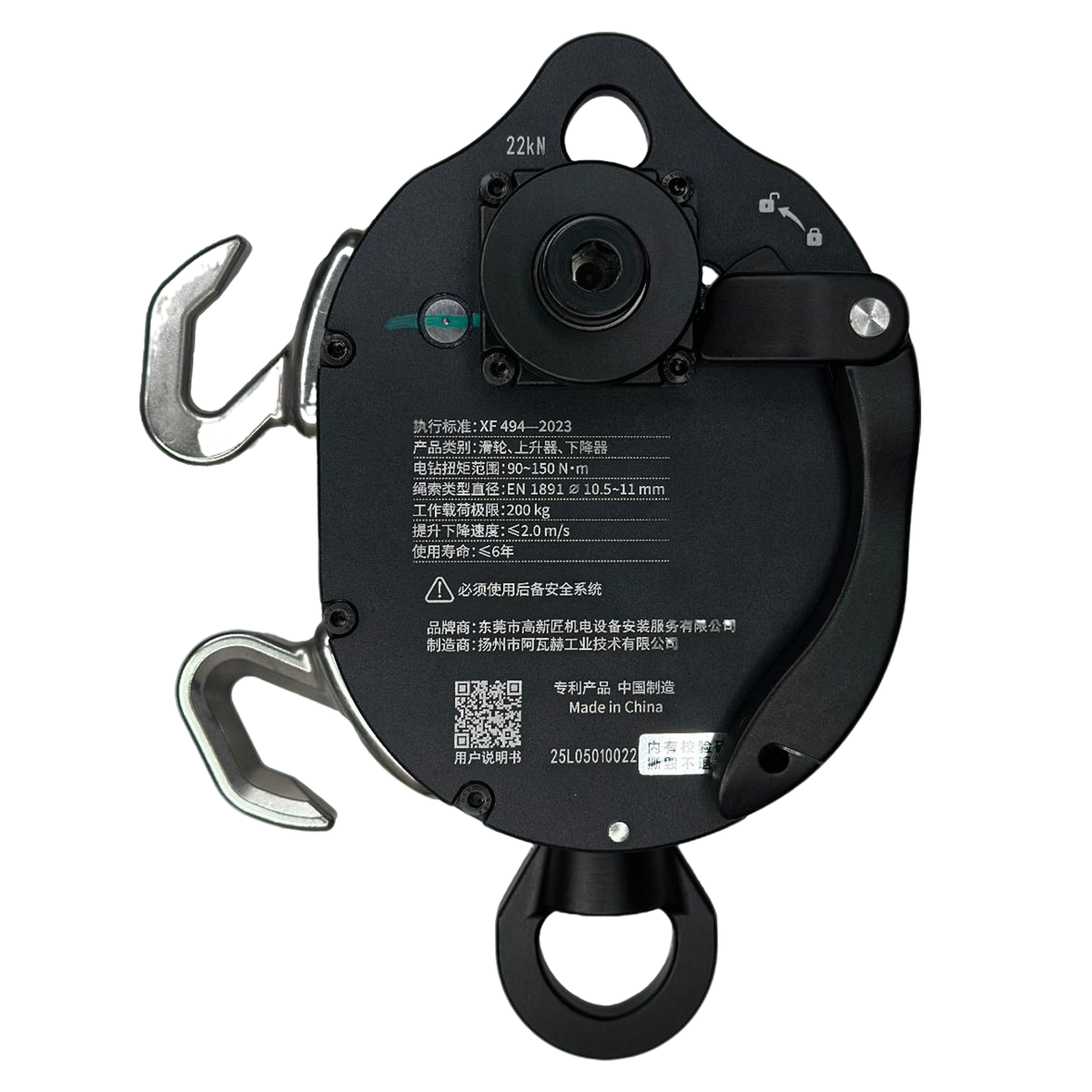

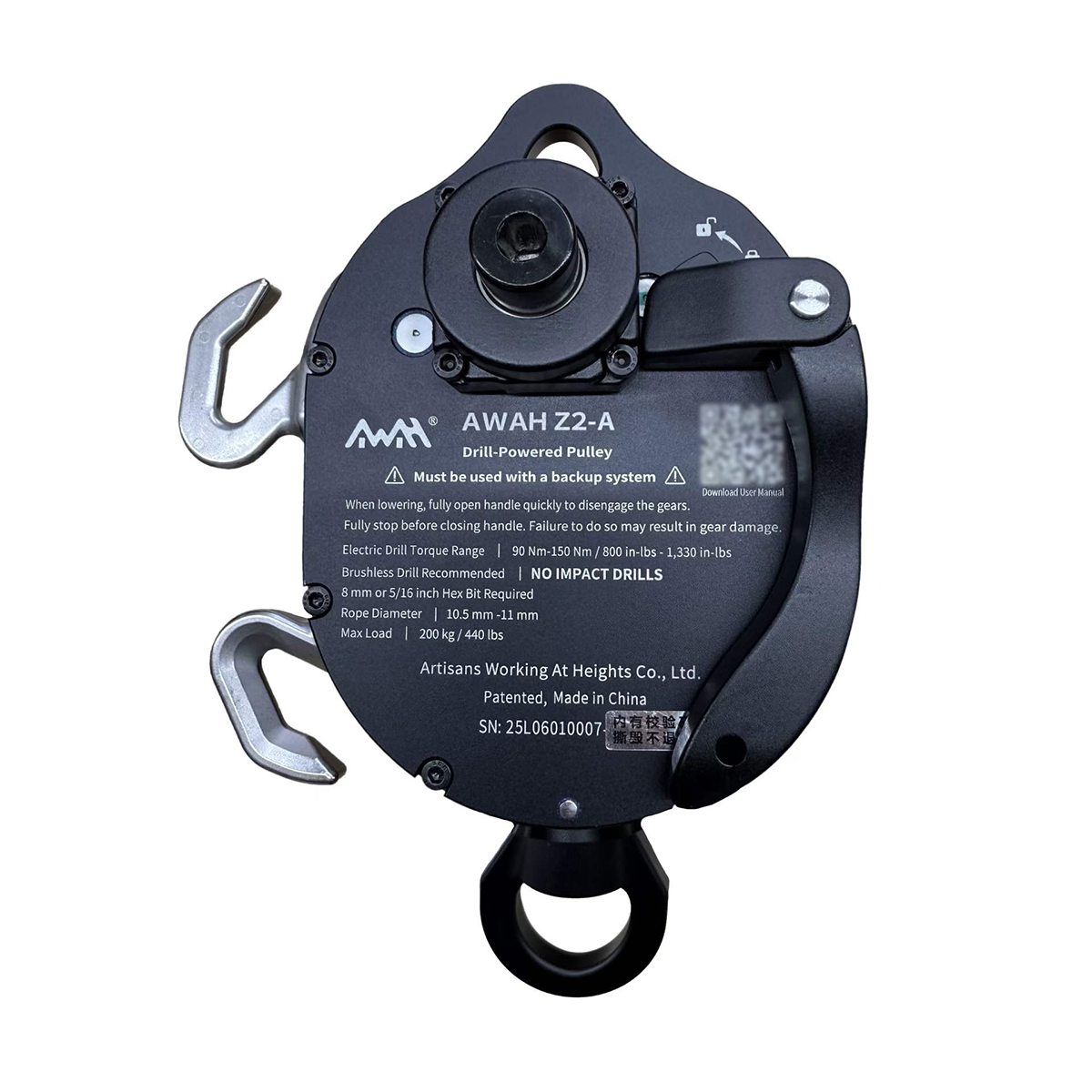

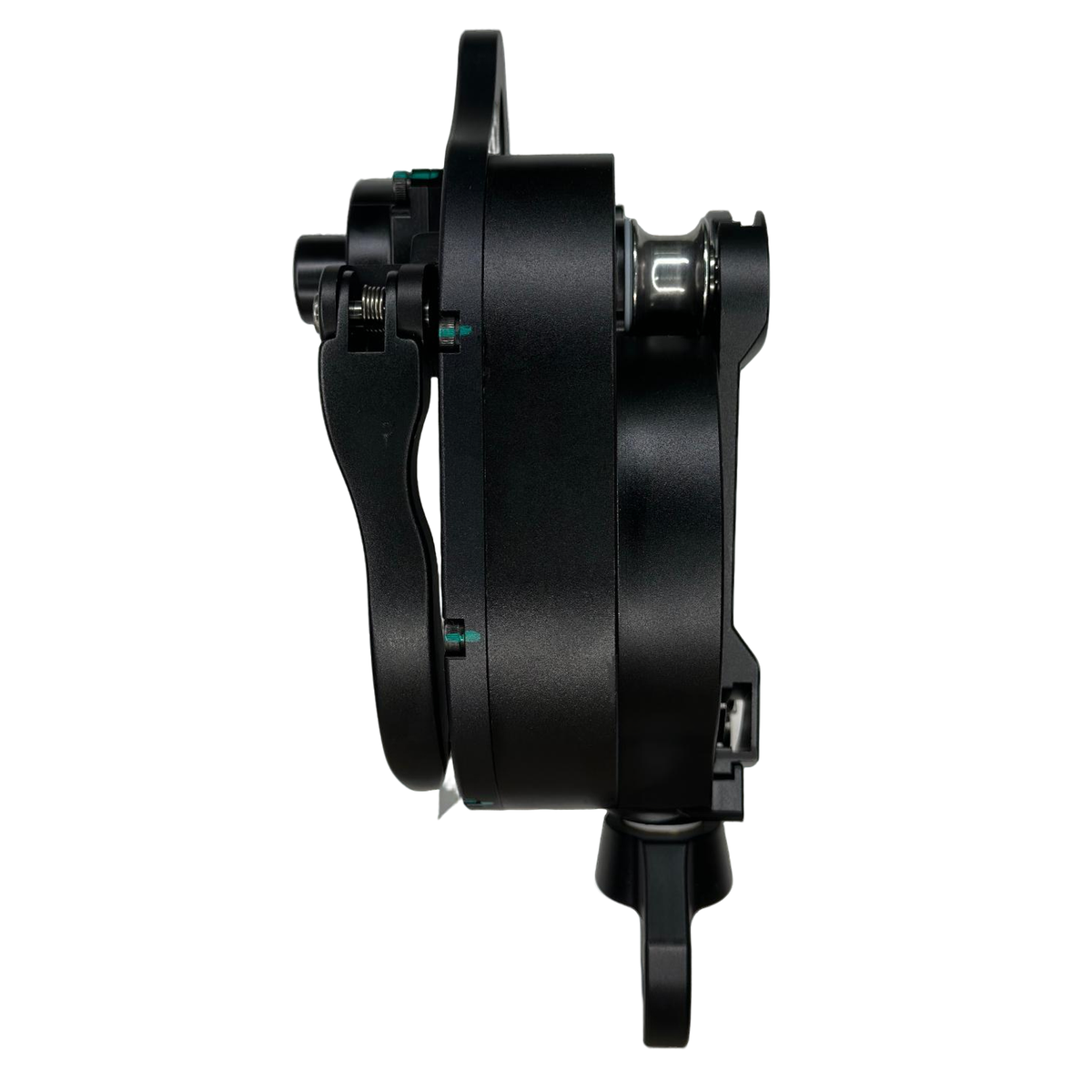

AWAH Z2-A Arborist Edition is a compact and powerful electric winch designed for arborists, rope access, and rescue operations. It lifts and lowers loads up to 200 kg using 10–11 mm EN1891 semi-static ropes, performing reliably even on dirty or icy ropes. Powered by an 18V brushless drill, it lifts a 100 kg load up to 160 m with an 8Ah battery. Weighing only 2.03 kg, the Z2-A offers high mobility and endurance. Its gearbox can be serviced every 20,000 m, ensuring long-term durability. Perfect for professionals needing a safe, efficient, and portable lifting tool in all environments.
| Parameter | Details |
|---|---|

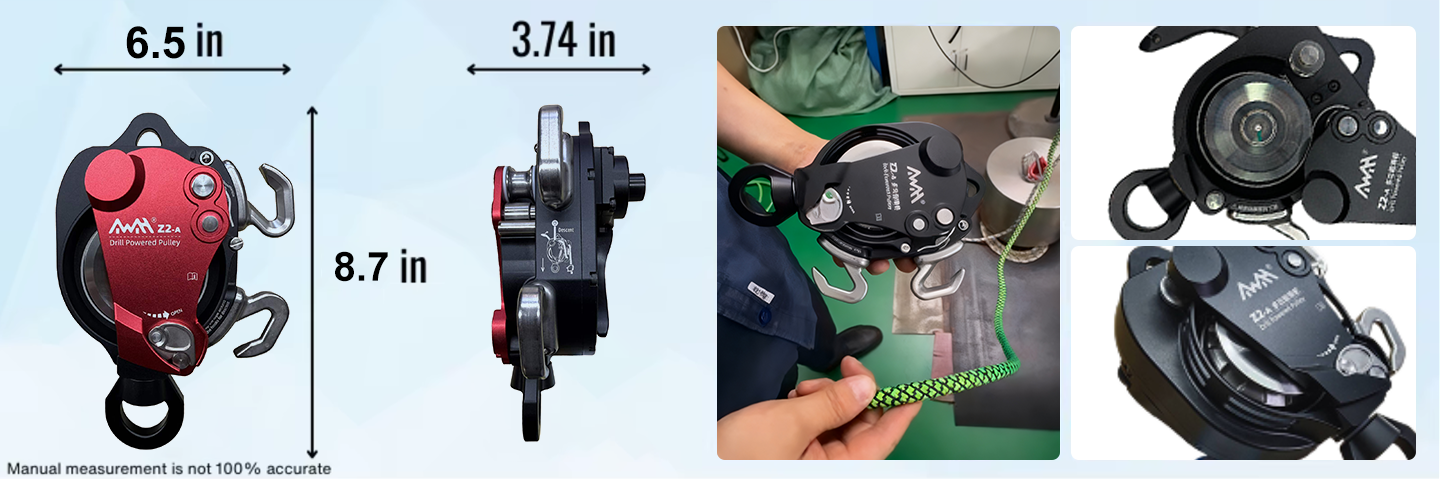

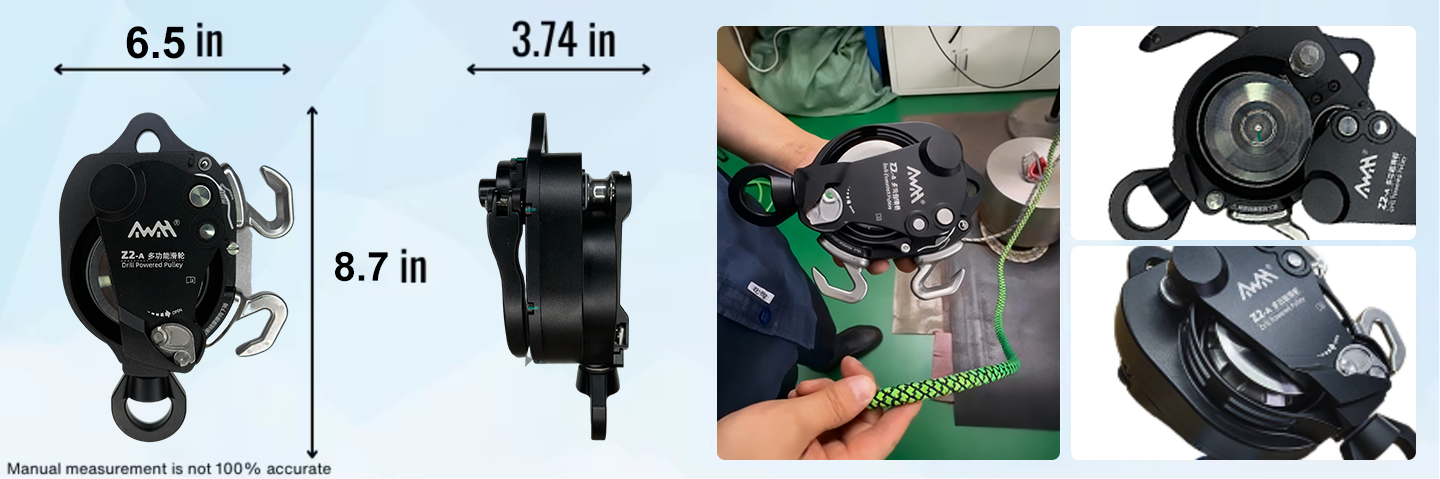

| Total Weight | 2.03 kg |
| Maximum Load Capacity | 200 kg |
| Power Source | Standard electric drill (not included) |
| Lifting Speed | 0.5 m/s (max load) ~ 2.0 m/s (min load) |
| Recommended Drill Type | Brushless drill, 90 – 150 N·m torque (non-impact) |
| Rope Insertion | Tool-free, no disassembly required |
| Compatible Rope Diaineter | 10-11 mm semi-static ropes (compliant with EN1891) |
| Manual Descent (No Drill) | Supported |
| Swivel Connector | Not included |
| Ingress Protection Rating | IP66 (dust-tight and protected against powerful water jets) |

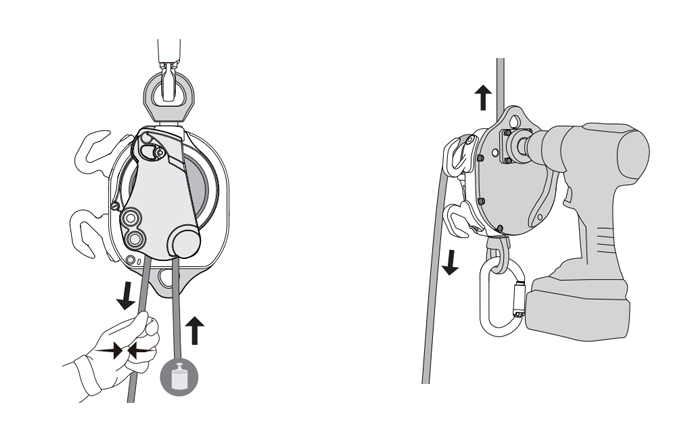

AWAH Z2-A adopts a streamlined rope loading design that allows you to prepare for lifting in seconds—simply place the rope along the guided track and secure the cover. No complicated setup, no specialized tools. Just pure efficiency when you need it most, whether you're in the canopy, on a remote hillside, or responding to time-critical field tasks.
Powered by a standard 18V brushless drill, the Z2-A delivers strong, smooth lifting power without internal batteries or charging wait time.
This modular design reduces downtime, enhances controllability, and ensures you always have the force you need—simply swap your drill battery and keep moving.

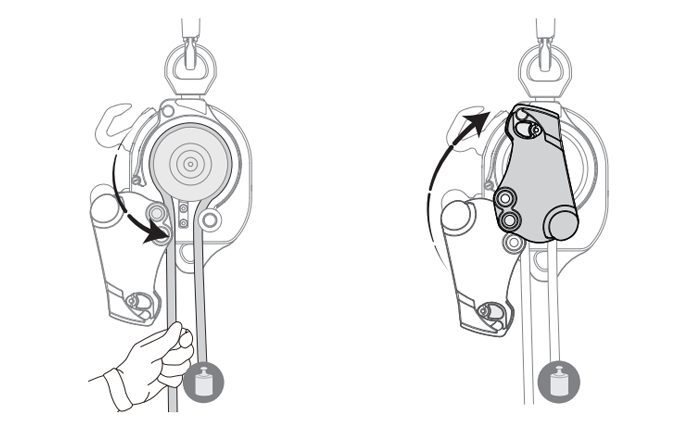

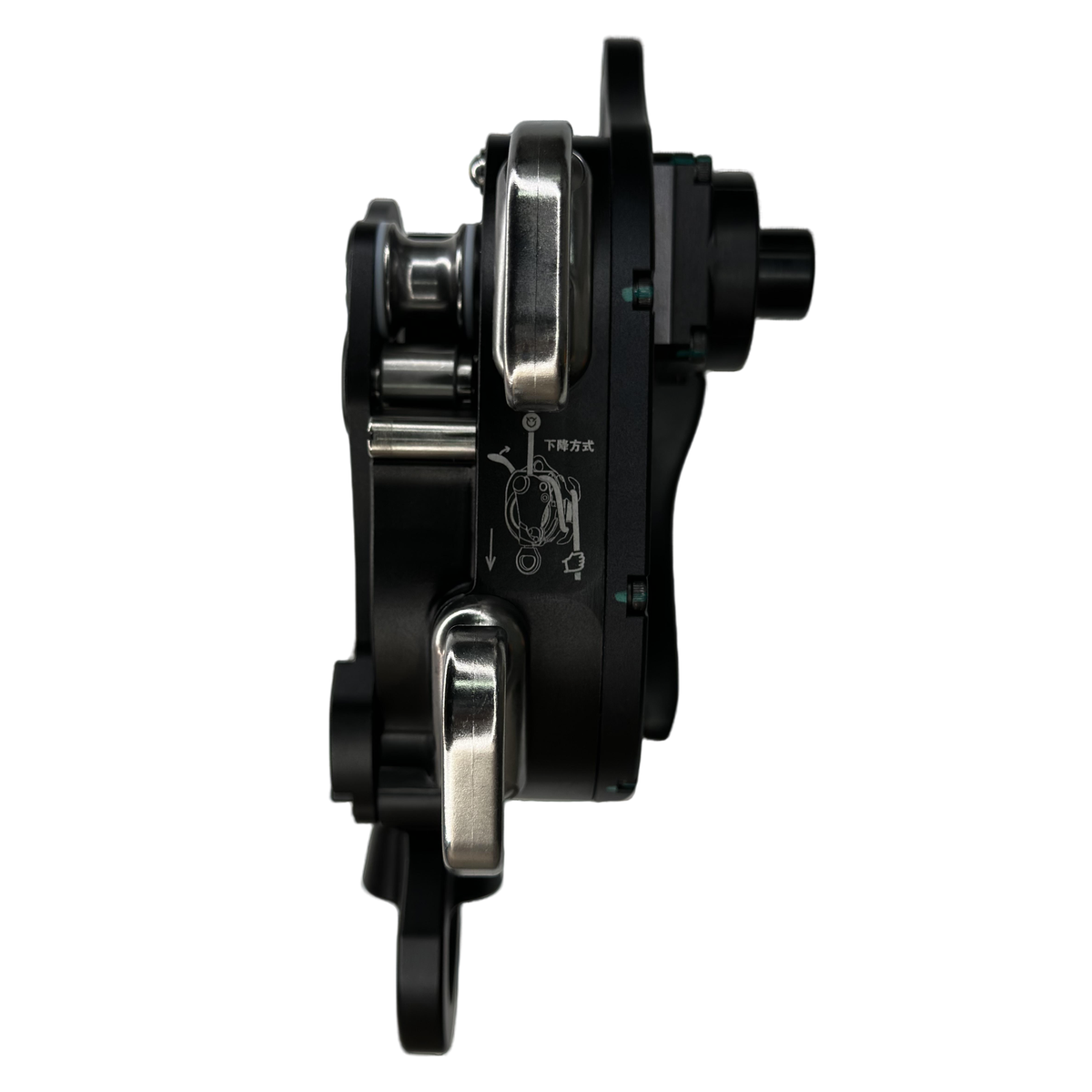

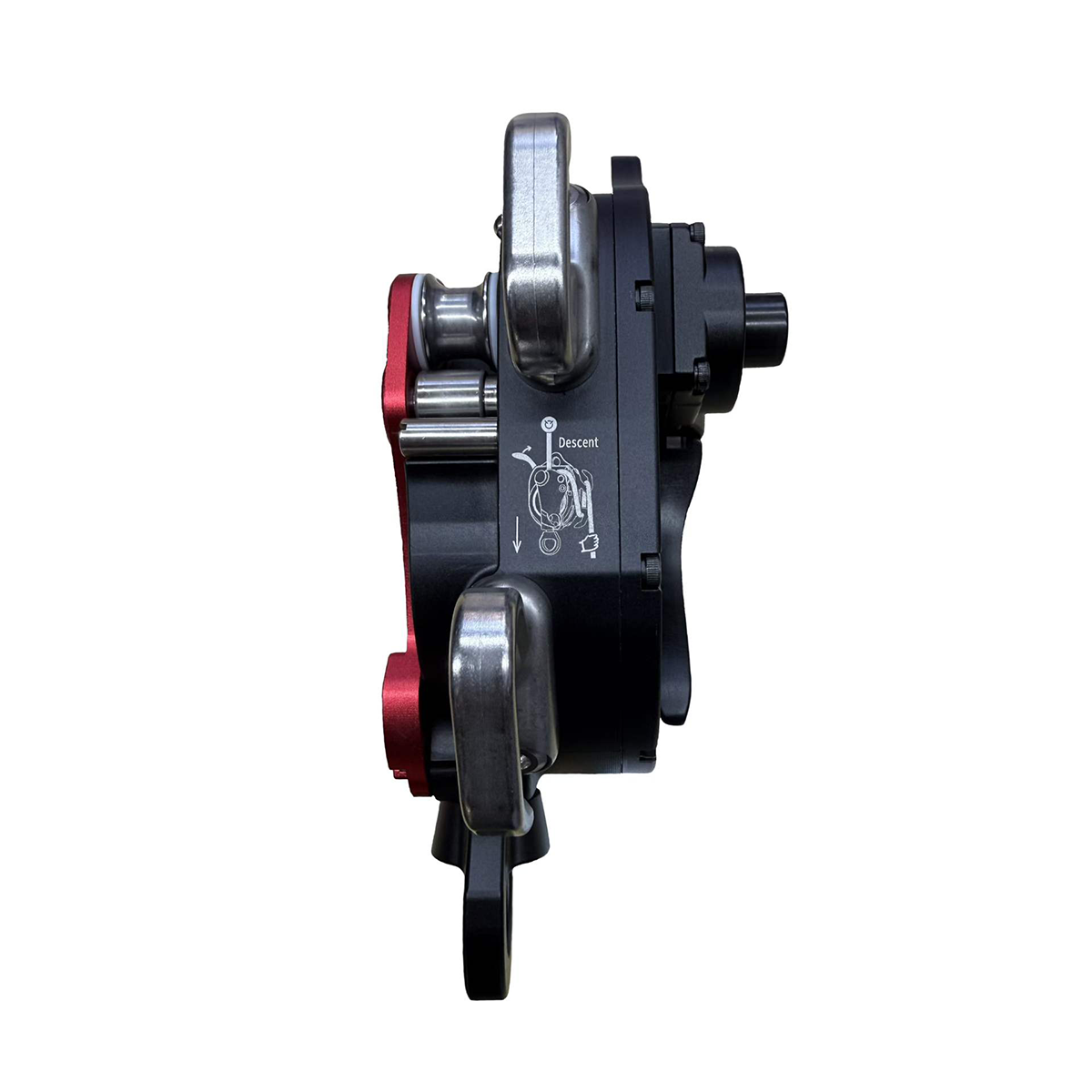

In the event of power loss or drill malfunction, the Z2-A features a manual mechanical descent system, enabling controlled lowering at any time. This ensures the safety of operators and loads during unexpected situations—critical for arborists, rope access teams, and rescue environments.
The AWAH Z2-A is backed by a 1-year limited warranty, covering any manufacturer defects in materials or workmanship.
Exclusions: This warranty does not cover damage resulting from:
Oil Bottle
Hexagonal adapter shaft 8mm x2
L-shaped hexagon wernch 2mm x1, 2.5mm x1
Safety master lock Random style

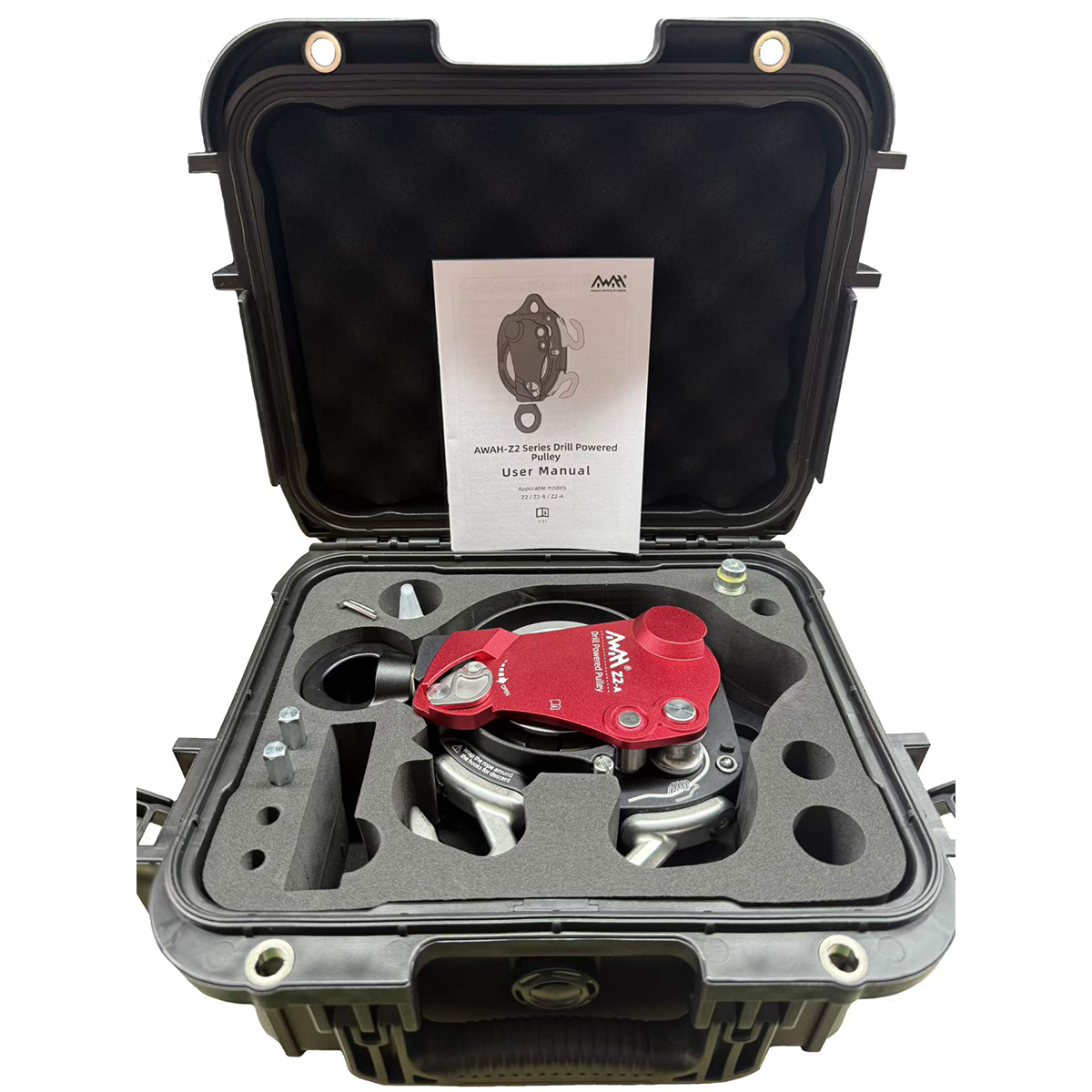

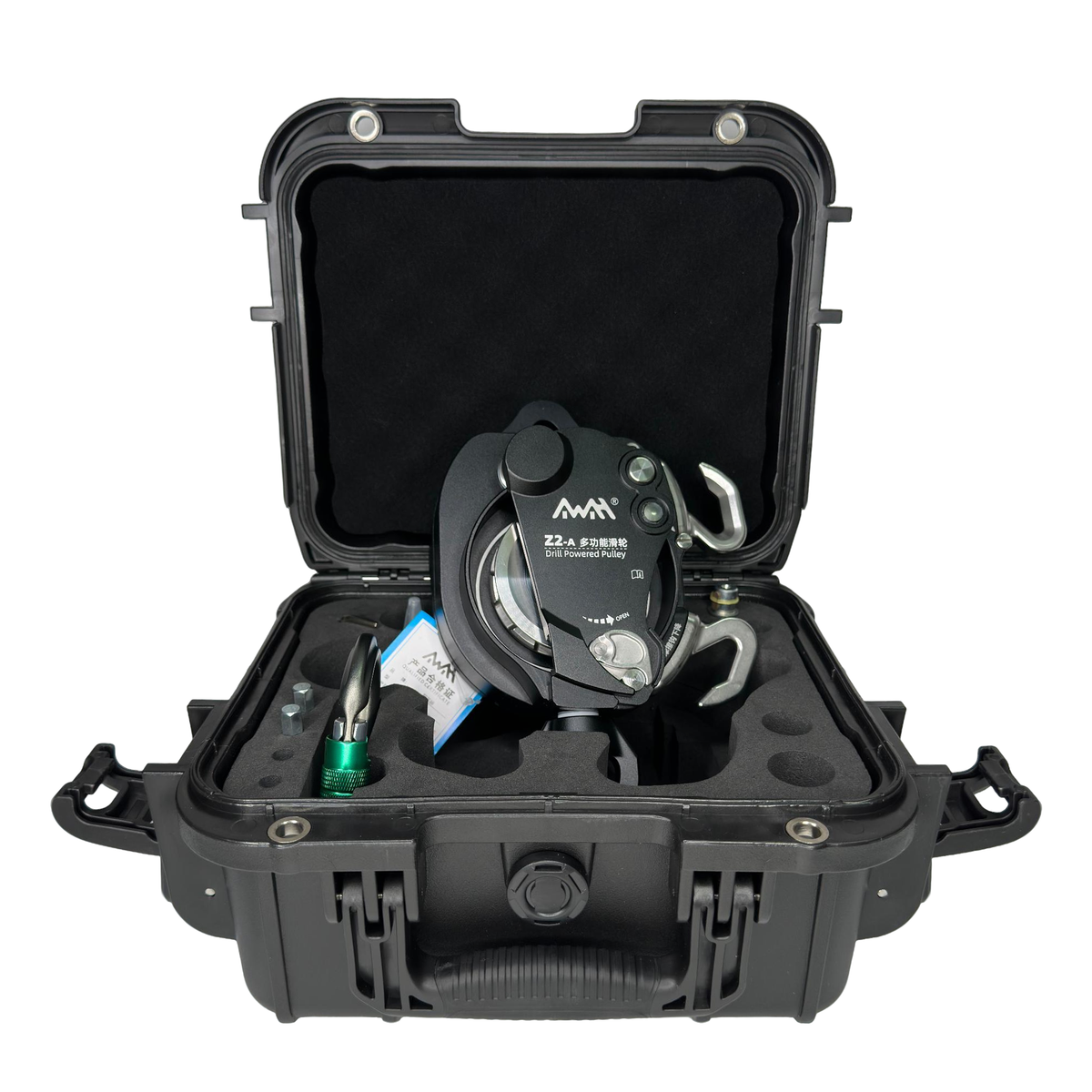

| Item | Notes |
|---|---|
| AWAH Z2-A Main Unit x1 | Packed in protective foam case |
| Hexagonal Adapter Shaft x2 | 8mm, for drill interface |
| Oil Bottle x1(Empty) | Empty bottle, for user-supplied lubricant |
| L-shaped Hexagon Wrench x2 | 2mm x1,2.5mm x1 |
| Safety Master Lock x1 | Random style carabiner |
| Custom Carrying Case x1 | Foam interior designed to fit all items |
The Awah Z3 Electric Lifting and Lowering Device is designed specifically for efficient and safe lifting and lowering of goods and personnel. Driven by a hand drill, this product offers automated lifting and manual lowering, making it suitable for complex and dynamic work environments. The device features an integrated dual self-locking mechanism that automatically engages in case of gearbox failure, preventing accidental falls and ensuring operational safety.
Product Parameters:
Model: Z3-PROF
Weight: 2.30 kg
Suitable Rope: EN 1891 A rope (Diameter 10 ~ 11 mm)
Working Load: 30 kg ~ 200 kg
Gear Ratio: 8:1
Drill Torque: 120~160 N•m / 1100~1450 in-lbs(no impact, brushless drill recommended)
Lowering Speed: 0.5 m/s (maximum load) ~ 2.0 m/s (minimum load)
Fall Protection Height: ≤ 1 m
Dust and Water Protection: IP66
Operating Temperature Range: -15°C ~ 45°C
Service Life: 6 years after production
Package Contents:
Main Unit × 1
Hex Drill Adapter (8 mm or 5/16 inch) × 2
User Manual × 1
Product Certificate × 1
