Engineered for industrial rope access professionals

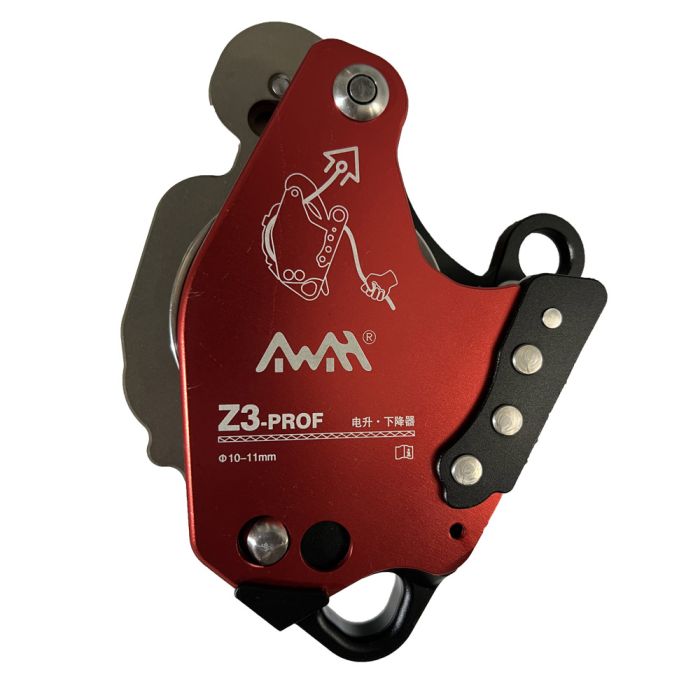

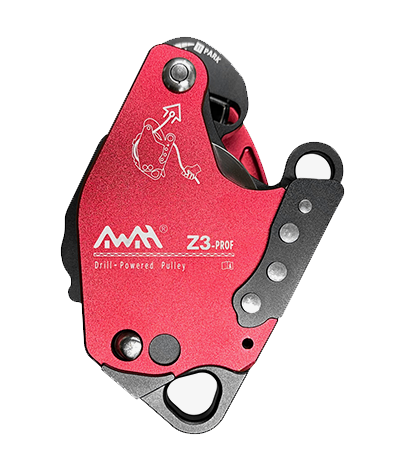

The Awah Z3 Electric Lifting and Lowering Device is designed specifically for efficient and safe
lifting and
lowering of goods and personnel. Driven by a hand drill, this product offers automated lifting
and manual
lowering, making it suitable for complex and dynamic work environments. The device features an
integrated
dual self-locking mechanism that automatically engages in case of gearbox failure, preventing
accidental
falls and ensuring operational safety.
Technical Specifications
Parameter
Details
Total Weight
2.3 kg
Maximum Load Capacity
200 kg
Power Source
Standard electric drill (not included)
Lifting Speed
Up to 1.2 m/s (with a high-power drill)
Recommended Drill Type
Brushless,120-160 N·m torque (non-impact)
Rope Insertion
Tool-free, no disassembly required
Compatible Rope Diaineter
10-11 mm semi-static ropes (compliant with EN1891)
Manual Descent (No Drill)
Supported
Swivel Connector
Not included
Ingress Protection Rating
IP66 (dust-tight and protected against powerful water jets)
Fast,Intuitive, Reliable
AWAH Z3 PROF features a tool-free rope installation system that
minimizes setup time and maximizes operational efficiency.Simply open the side plate,follow
the guided path, and you're ready to go.No complicated steps, no tools needed -just
precision and speed.ldeal for emergency deployments and time-critical tasks.
Simple,Safe,Effective
The AWAH Z3 PROF requires no internal battery.It
connects directly to a cordless drill via a standard adapter, allowing instant operation
with minimal setup.
This design reduces complexity, enhances control,and
eliminates the need for charging--ensuring reliable lifting power anytime, anywhere.
Emergency Descent Feature
In the event of a power loss or drill failure, the AWAH Z3 PROF is
equipped with a built-ingravity-assisted descent mechanism. This allows for controlled manual
lowering at any time, ensuring your safety even in unforeseen situations.
Mechanical structure
Packaging List
Oil Bottle
Hexagonal adapter shaft 8mm x2
L-shaped hexagon wernch 2mm x1, 2.5mm x1
Safety master lock Random style
Item
Notes
AWAH Z3-PROF Main Unit x1
Packed in protective foam case
Hexagonal Adapter Shaft x2
8mm, for drill interface
Oil Bottle x1(Empty)
Empty bottle, for user-supplied lubricant
L-shaped Hexagon Wrench x2
2mm x1,2.5mm x1
Safety Master Lock x1
Random style carabiner
Custom Carrying Case x1
Foam interior designed to fit all items
FAQ
What is the maximum load capacity of the AWAH Z3 models?
The AWAH Z3 PROF supports up to 200 kg, making it ideal for compact lifting needs. The AWAH Z3 FIRE has an enhanced 285 kg capacity, suitable for heavy-duty or rescue operations.
What safety features does the AWAH Z3 offer?
The AWAH Z3 features a dual self-locking system. In case the primary gear mechanism fails, a backup lock engages within 10 cm of descent, preventing free fall. It has been tested with 285 kg loads generating up to 5.69 kN impact force (2G simulation), ensuring maximum reliability in emergencies.
How durable is the AWAH Z3?
Designed for long-term use, the AWAH Z3 includes corrosion-resistant stainless steel components and a modular structure for easy part replacement (e.g., rope wheel, gear set). It has passed rigorous impact fracture tests up to 9.08 kN, significantly reducing maintenance needs over time.
What kind of applications is the AWAH Z3 suitable for?
The AWAH Z3 is versatile enough for industrial lifting (e.g., warehouse or construction work) and emergency rescue (e.g., firefighting, high-rise evacuation). The Z3 FIRE’s 285 kg capacity and compact form factor make it highly adaptable to demanding scenarios.
Can the AWAH Z3 operate in extreme conditions?
Yes. The unit is rated IP65, providing dust and water resistance. The anti-slip rope wheel design prevents malfunction even in wet or frozen conditions (tested with frozen ropes). The reinforced shell withstands temperatures from -20°C to +60°C.
How does the AWAH Z3 compare to traditional manual hoists?
The AWAH Z3 reduces physical strain by up to 80% using a drill-powered drive, while offering precise control. Its automatic locking system eliminates the need for continuous manual braking. Compared to traditional pulley systems, it doubles lifting efficiency.
The Awah Z3 Electric Lifting and Lowering Device is designed specifically for efficient and safe lifting and lowering of goods and personnel. Driven by a hand drill, this product offers automated lifting and manual lowering, making it suitable for complex and dynamic work environments. The device features an integrated dual self-locking mechanism that automatically engages in case of gearbox failure, preventing accidental falls and ensuring operational safety.
Product Parameters:
Model: Z3-PROF Weight: 2.30 kg Suitable Rope: EN 1891 A rope (Diameter 10 ~ 11 mm) Working Load: 30 kg ~ 200 kg Gear Ratio: 8:1 Drill Torque: 120~160 N•m / 1100~1450 in-lbs(no impact, brushless drill recommended) Lowering Speed: 0.5 m/s (maximum load) ~ 2.0 m/s (minimum load) Fall Protection Height: ≤ 1 m Dust and Water Protection: IP66 Operating Temperature Range: -15°C ~ 45°C Service Life: 6 years after production Package Contents:
Main Unit × 1 Hex Drill Adapter (8 mm or 5/16 inch) × 2 User Manual × 1 Product Certificate × 1
View More
