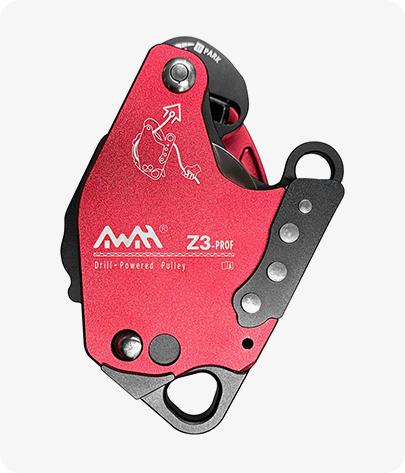

AWAH Z3 PROF

Engineered for industrial rope access professionals

The Awah Z3 Electric Lifting and Lowering Device is designed specifically for efficient and safe lifting and lowering of goods and personnel. Driven by a hand drill, this product offers automated lifting and manual lowering, making it suitable for complex and dynamic work environments. The device features an integrated dual self-locking mechanism that automatically engages in case of gearbox failure, preventing accidental falls and ensuring operational safety.

AWAHZ3-display-1 AWAHZ3-display-2 AWAHZ3-display-3 AWAHZ3-display-4

Technical Specifications

AWAHZ3
Parameter Details
Total Weight 2.3 kg
Maximum Load Capacity 200 kg
Power Source Standard electric drill (not included)
Lifting Speed Up to 1.2 m/s (with a high-power drill)
Recommended Drill Type Brushless,120-160 N·m torque (non-impact)
Rope Insertion Tool-free, no disassembly required
Compatible Rope Diaineter 10-11 mm semi-static ropes (compliant with EN1891)
Manual Descent (No Drill) Supported
Swivel Connector Not included
Ingress Protection Rating IP66 (dust-tight and protected against powerful water jets)

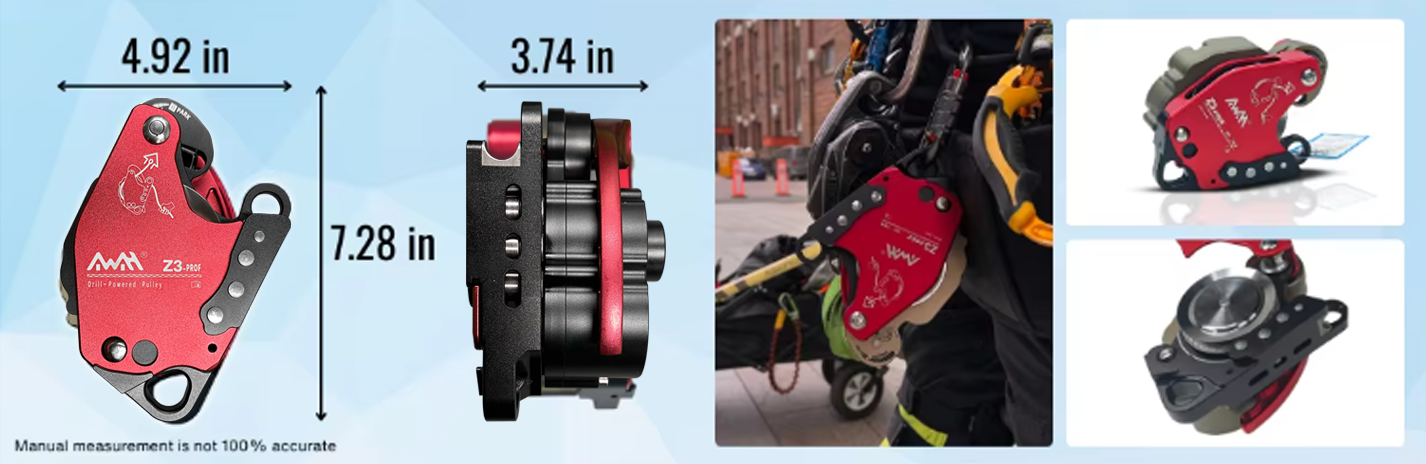

AWAHZ3-Size

Fast,Intuitive, Reliable

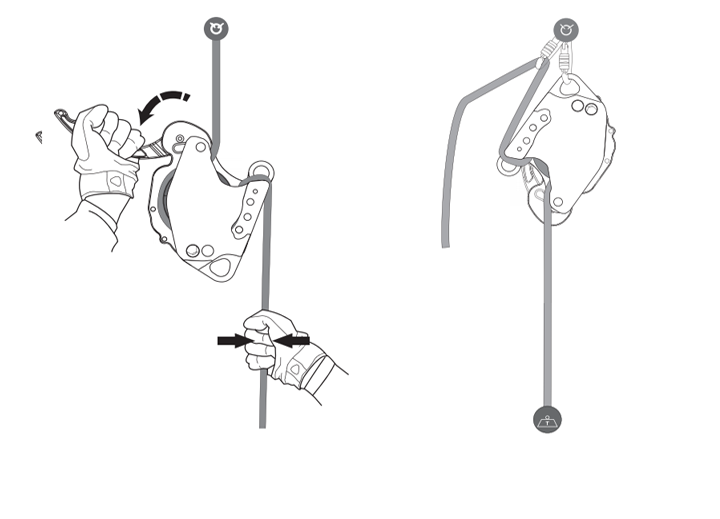

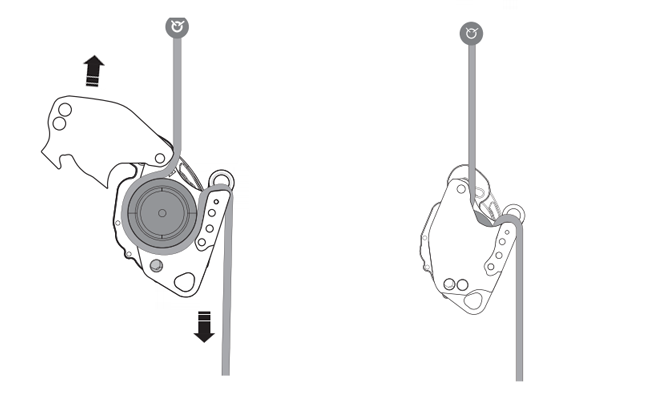

AWAH Z3 PROF features a tool-free rope installation system that minimizes setup time and maximizes operational efficiency.Simply open the side plate,follow the guided path, and you're ready to go.No complicated steps, no tools needed -just precision and speed.ldeal for emergency deployments and time-critical tasks.

Simple,Safe,Effective

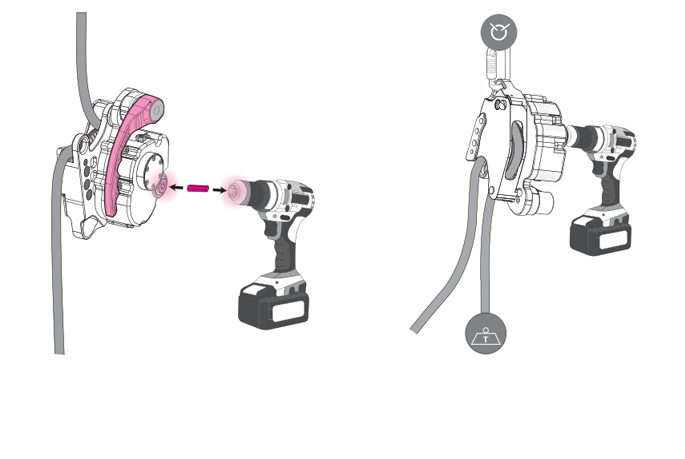

The AWAH Z3 PROF requires no internal battery.It connects directly to a cordless drill via a standard adapter, allowing instant operation with minimal setup.

This design reduces complexity, enhances control,and eliminates the need for charging--ensuring reliable lifting power anytime, anywhere.

Emergency Descent Feature

In the event of a power loss or drill failure, theAWAH Z3 PROF is equipped with a built-ingravity-assisted descent mechanism. This allowsfor controlled manual lowering at any time, ensuringyour safety even in unforeseen situations.

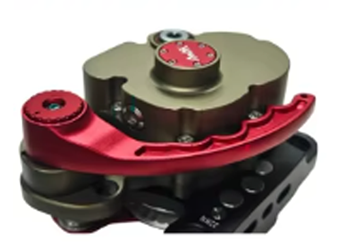

HANDLE FOR RELEASING

This device features a dual self-locking mechanism.When in use, the greater the pull, the faster it drops.The descent speed ranges from 0.5m/s (under maximum load) to 2.0 m/s (under minimum load).

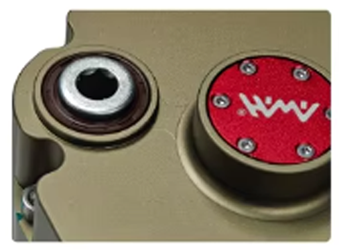

ELECTRIC DRILL ADAPTER INTERFACE

Use a hexagonal adapter shaft (8 mm or 5/16 inch).Do not use the impact function,which will cause the device to be scrapped. Drill torque: 120~160 N-m/1100~1450in-lbs without impact (Recommend using a brushless hand drill)

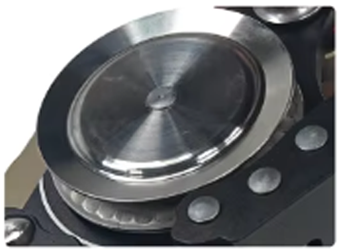

WHEEL FOR WINDING ROPE

Designed for kernmantle ropes (sheath + core) No twisted rope or cable allowed.Applicable ropes: EN 1891A ropes.Ultra-high molecular weight polyethylene and polypropylene ropes are strictly prohibited.

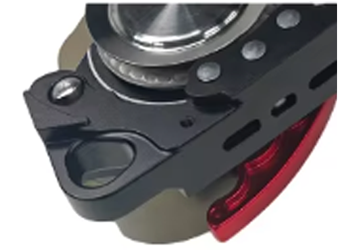

MAIN ATTACHMENT HOLE

When the attachment hole is connected to the user's harness, Thisproduct can lift the user and move up with him/her; When the attachmenthole is connected to the anchor point, this product does not move with theuser and can be used to lift remote goods or personnel. This product canbe used alone or combined with additional pulley(s) to form a mechanicaladvantage System.

Oil Bottle

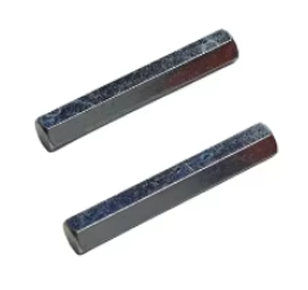

Hexagonal adapter shaft 8mm x2

L-shaped hexagon wernch 2mm x1, 2.5mm x1

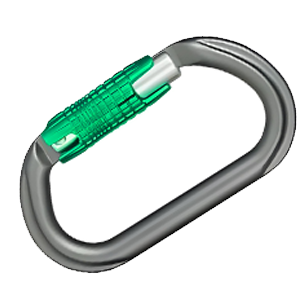

Safety master lock Random style

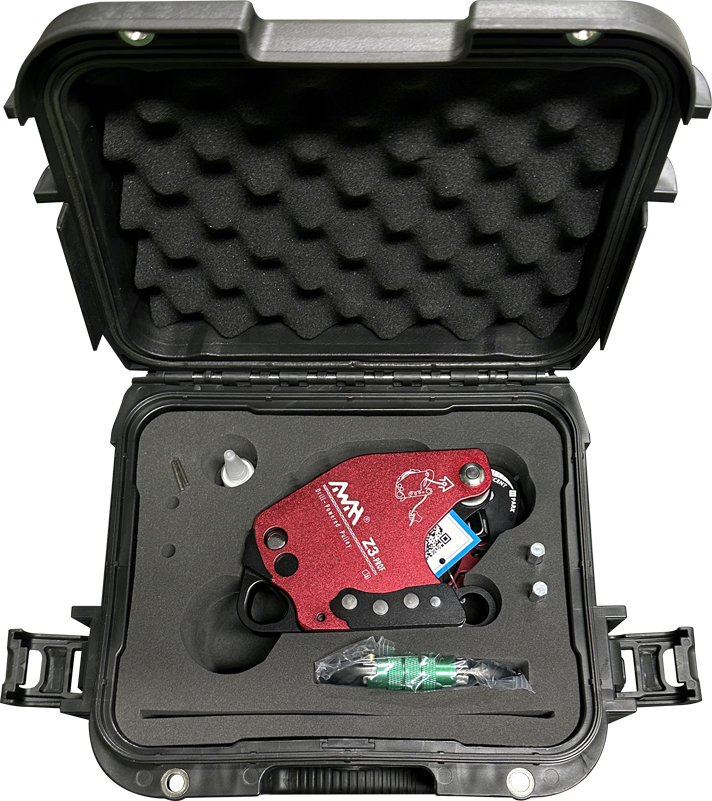

AWAH Z3-PROF Packaging List

Item Quantity Notes
AWAH Z3-PROF Main Unit 1 Packed in protective foam case
Hexagonal Adapter Shaft 2 8mm, for drill interface
Oil Bottle (Empty) 1 Empty bottle, for user-supplied lubricant
L-shaped Hexagon Wrench 2 2mm x1,2.5mm x1
Safety Master Lock 1 Random style carabiner
Custom Carrying Case 1 Foam interior designed to fit all items
