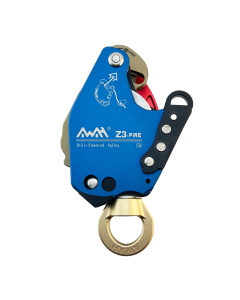

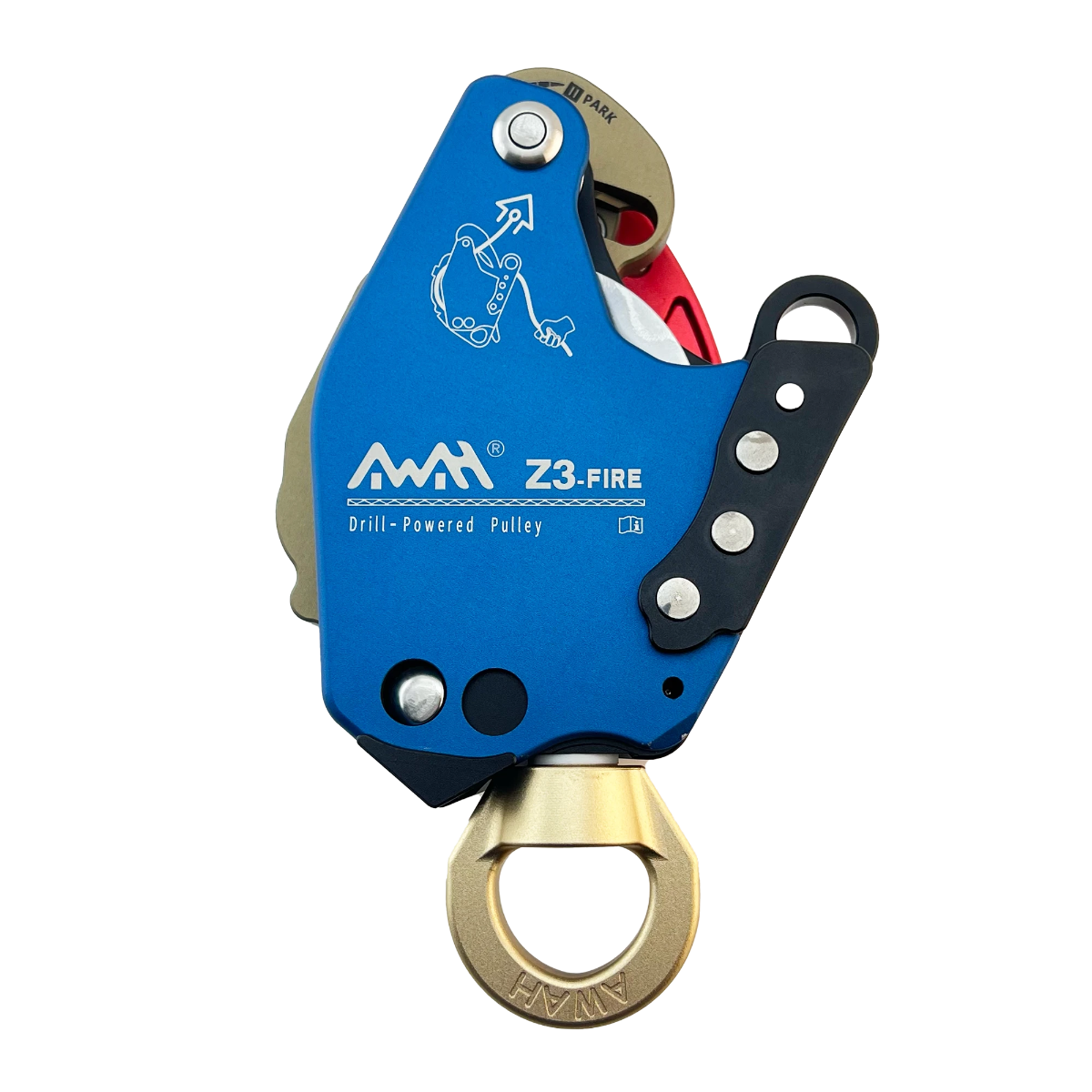

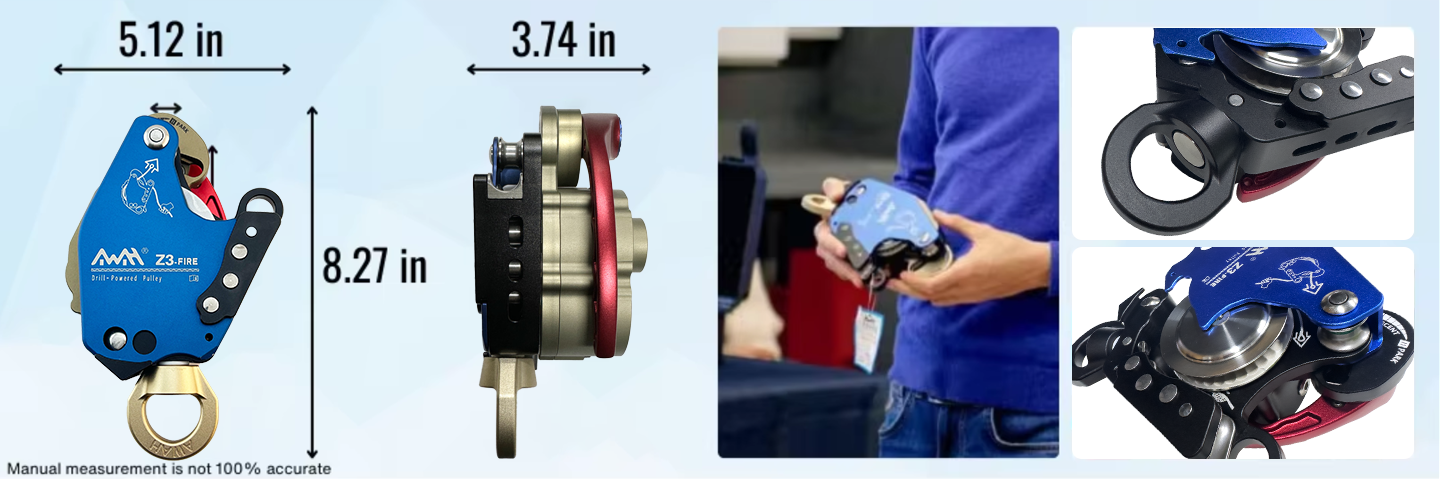

AWAH Z3-FIRE Electric Lifting and Lowering Device for Firefighting Applications with Drill-Powered Pulley

Sku AWAHZ3FIRE

Reviews

Rating:

98%

(14)

Delivery Time

Ships within 24 hours of order
Delivery in 2–4 days (DHL/UPS/FedEx)

Add to Wish List Add to Compare

Or 2,500.00$ Special Price 1,990.00$

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Buy together

-0.00$

AWAH Z3-FIRE Electric Lifting and Lowering Device for Firefighting Applications with Drill-Powered Pulley

Rating:

98%

(14)

Or 2,500.00$ Special Price 1,990.00$

-0.00$

Adjustable Tool Leash | High-Strength Tether for Climbing, Rescue & Work at Heights

Rating:

(0)

20.00$

-0.00$

Adjustable Tool Fall Protection Lanyard | Safety Tether for Power Tools | High-Strength Drop Prevention Rope

30.00$

Save 0.00$

2,040.00$

The AWAH Z3-FIRE Electric Lifting and Lowering Device is specifically designed for firefighting applications, making it ideal for the efficient and safe lifting and lowering of loads and personnel. Powered by a hand drill, it enables automatic lifting and manual lowering, making it suitable for complex and challenging operational environments. Unlike the standard Z3 model, the Z3-FIRE features a robust swivel mount at the bottom, providing added flexibility and maneuverability. The double self-locking mechanism ensures safety by automatically engaging in case of gear failure, minimizing the risk of accidental drops.

Technical Specifications

Parameter	Details
Total Weight	2.37 KG
Maximum Load Capacity	285 KG
Power Source	Standard electric drill (not included)
Lifting Speed	Up to 1.2 m/s (with a high-power drill)
Recommended Drill Type	Brushless,120-160 N·m torque (non-impact)
Rope Insertion	Tool-free, no disassembly required
Compatible Rope Diaineter	10-11 mm semi-static ropes (compliant with EN1891)
Manual Descent (No Drill)	Supported
Swivel Connector	Not included
Ingress Protection Rating	IP66 (dust-tight and protected against powerful water jets)

Fast,Intuitive, Reliable

AWAH Z3 FIRE features a tool-free rope installation system that minimizes setup time and maximizes operational efficiency.Simply open the side plate,follow the guided path, and you're ready to go.No complicated steps, no tools needed -just precision and speed.ldeal for emergency deployments and time-critical tasks.

Simple,Safe,Effective

The AWAH Z3 FIRE requires no internal battery.It connects directly to a cordless drill via a standard adapter, allowing instant operation with minimal setup.

This design reduces complexity, enhances control,and eliminates the need for charging--ensuring reliable lifting power anytime, anywhere.

Emergency Descent Feature

In the event of a power loss or drill failure, the AWAH Z3 FIRE is equipped with a built-ingravity-assisted descent mechanism. This allows for controlled manual lowering at any time, ensuring your safety even in unforeseen situations.

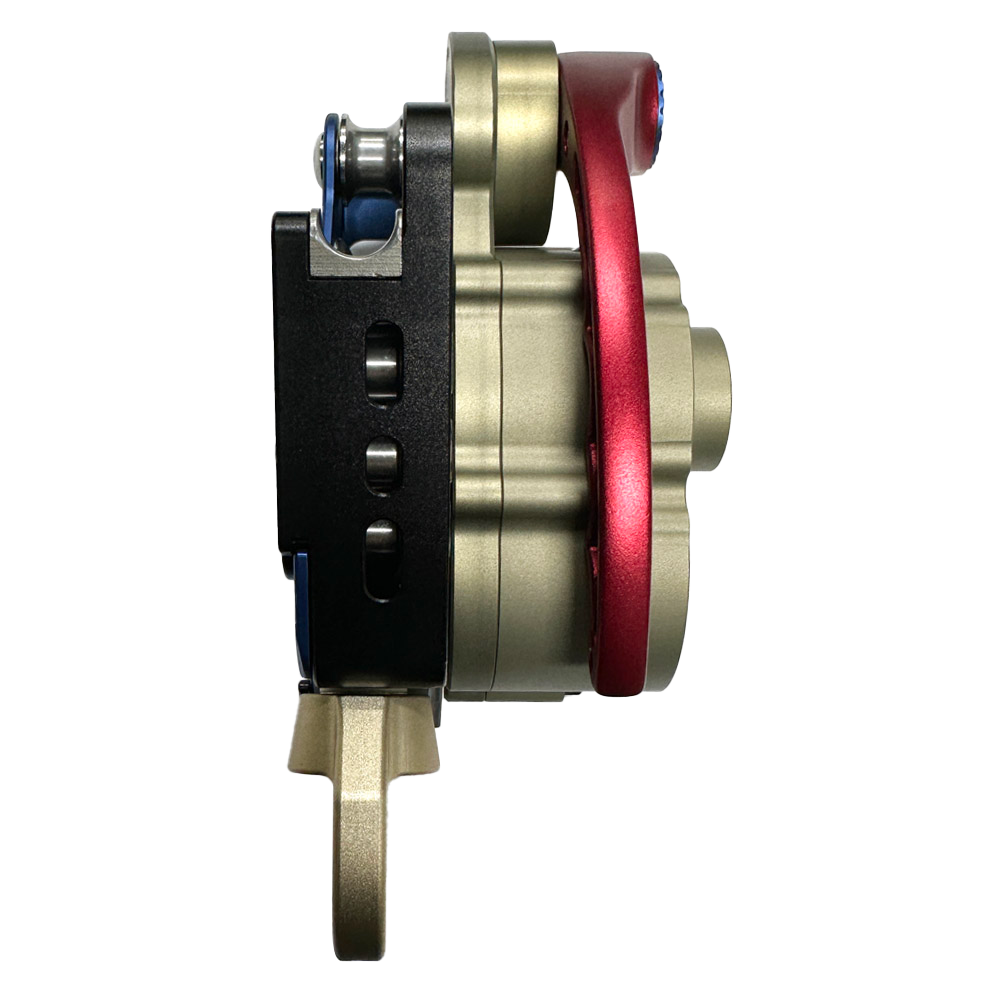

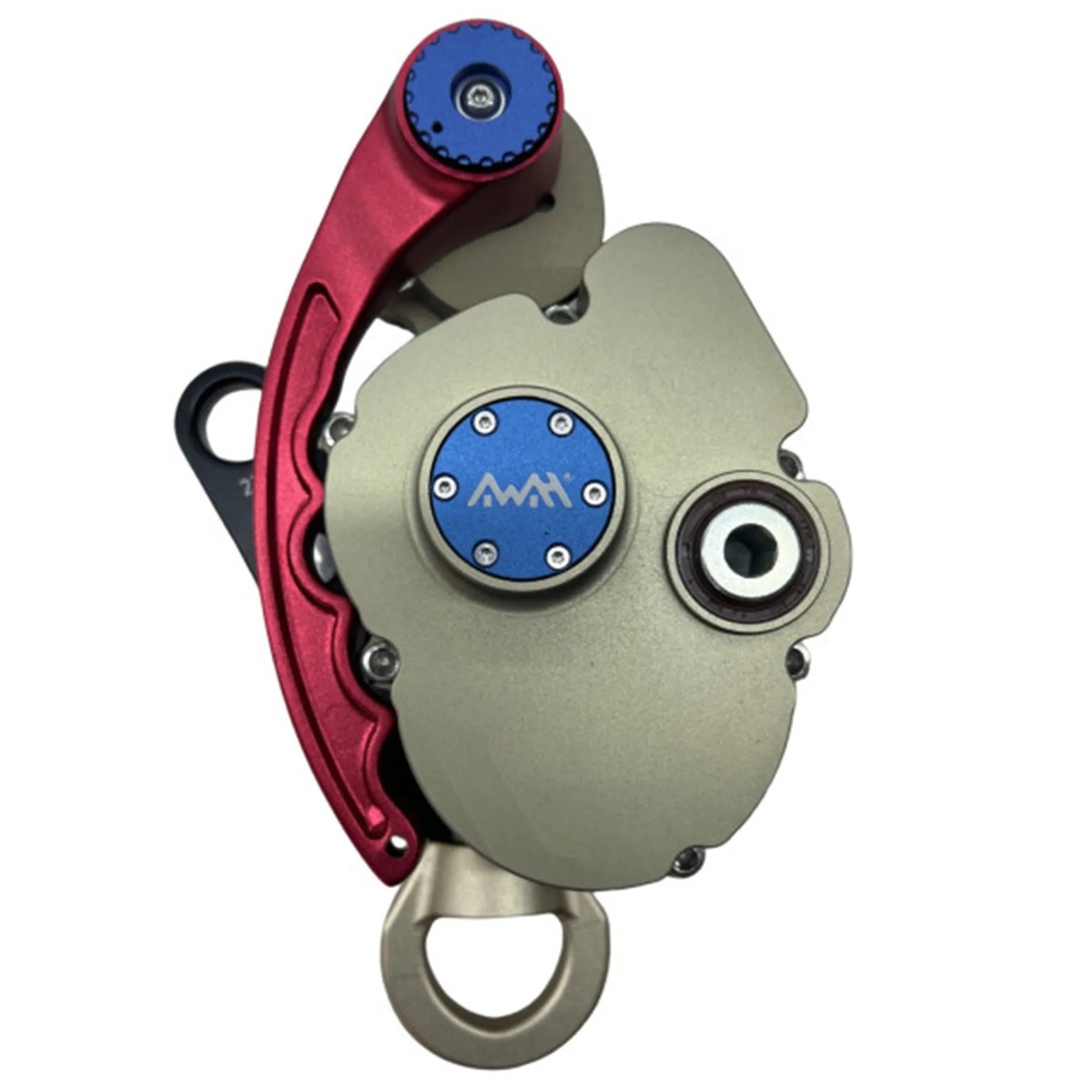

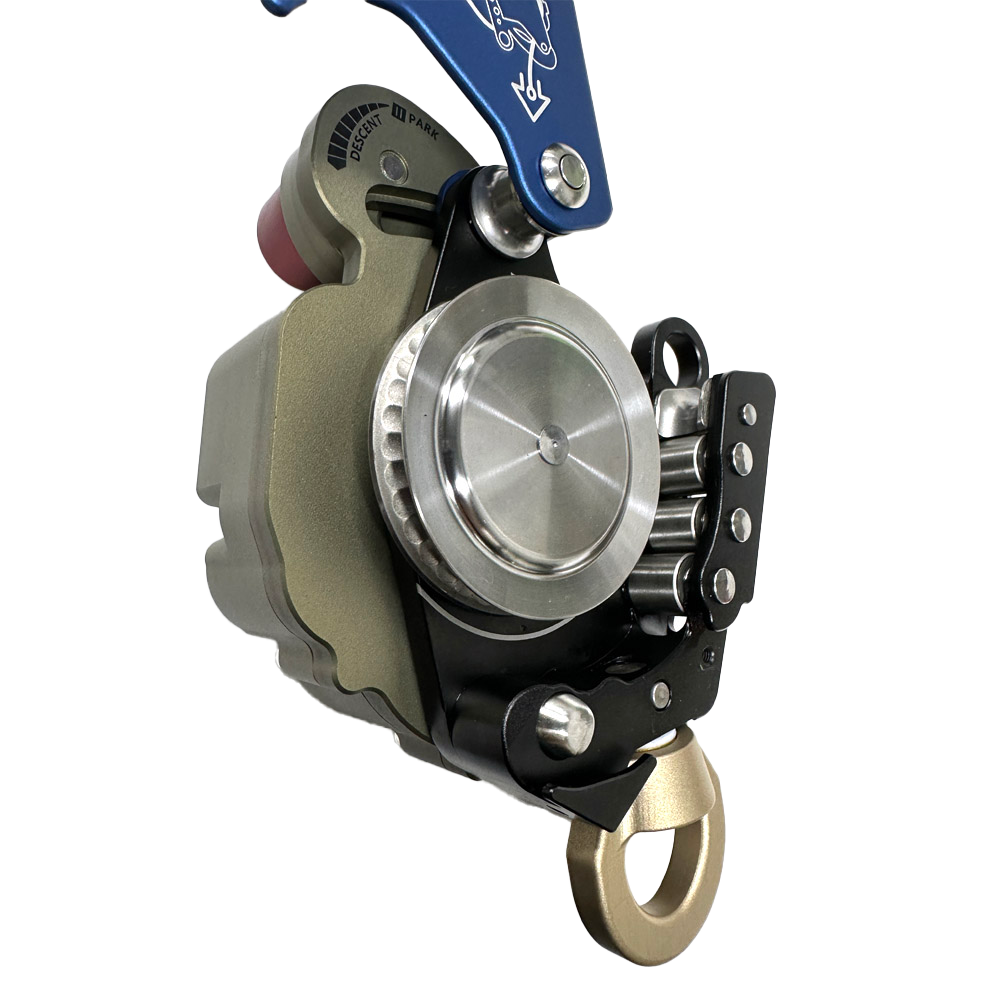

Mechanical structure

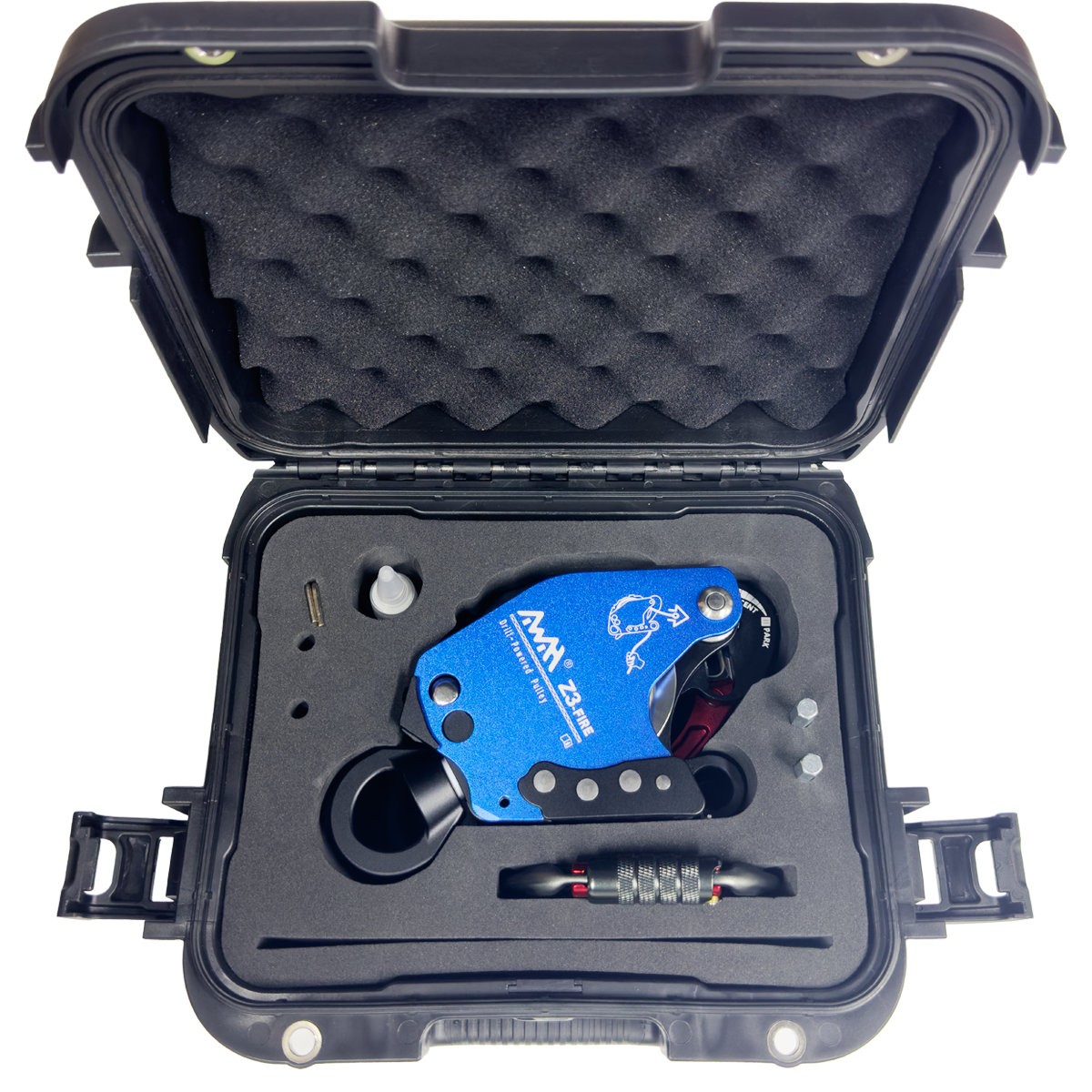

Packaging List

Oil Bottle

Hexagonal adapter shaft 8mm x2

L-shaped hexagon wernch 2mm x1, 2.5mm x1

Safety master lock Random style

Item	Notes
AWAH Z3-FIRE Main Unit x1	Packed in protective foam case
Hexagonal Adapter Shaft x2	8mm, for drill interface
Oil Bottle x1(Empty)	Empty bottle, for user-supplied lubricant
L-shaped Hexagon Wrench x2	2mm x1,2.5mm x1

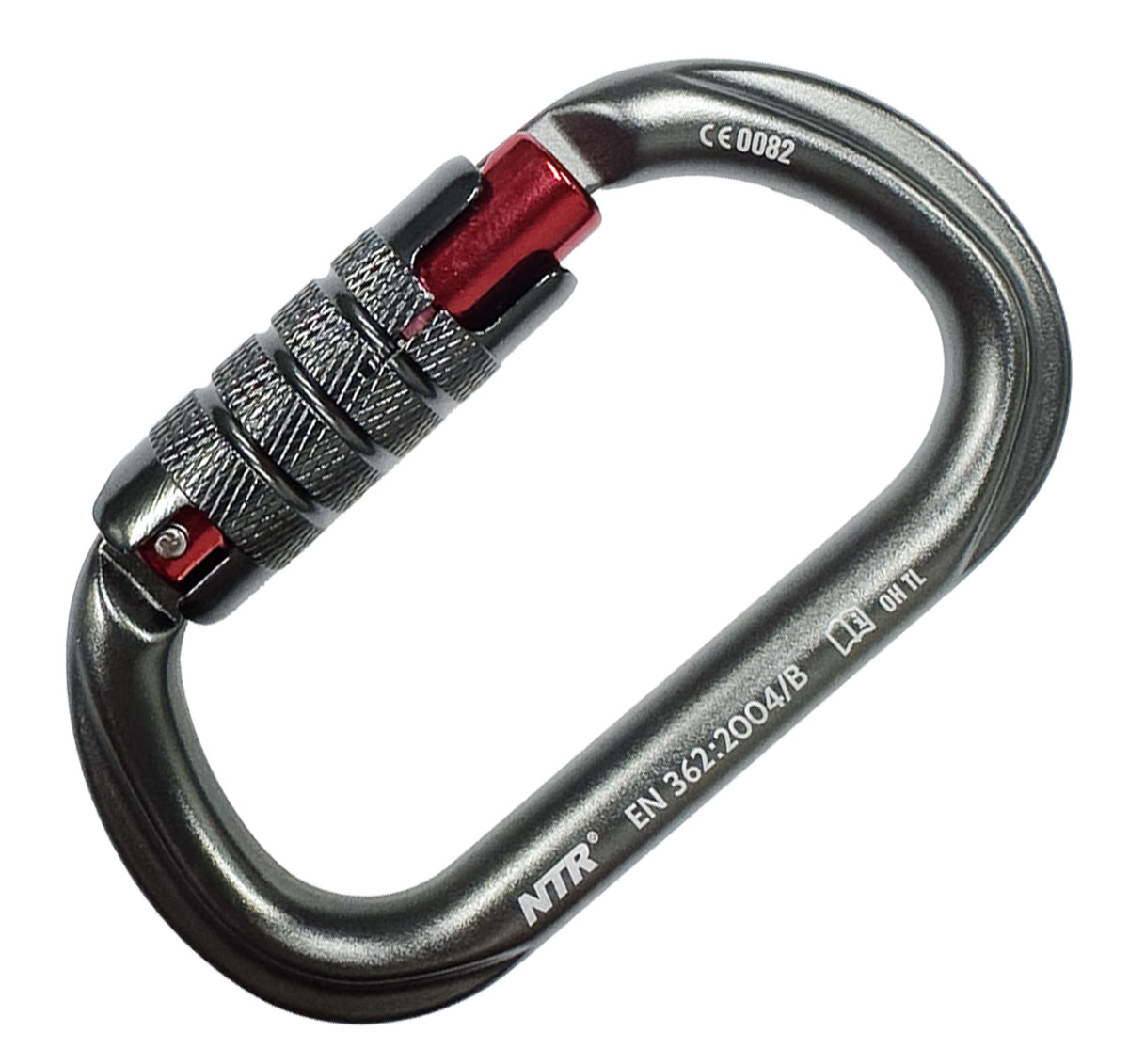

Safety Master Lock x1	Random style carabiner
Custom Carrying Case x1	Foam interior designed to fit all items

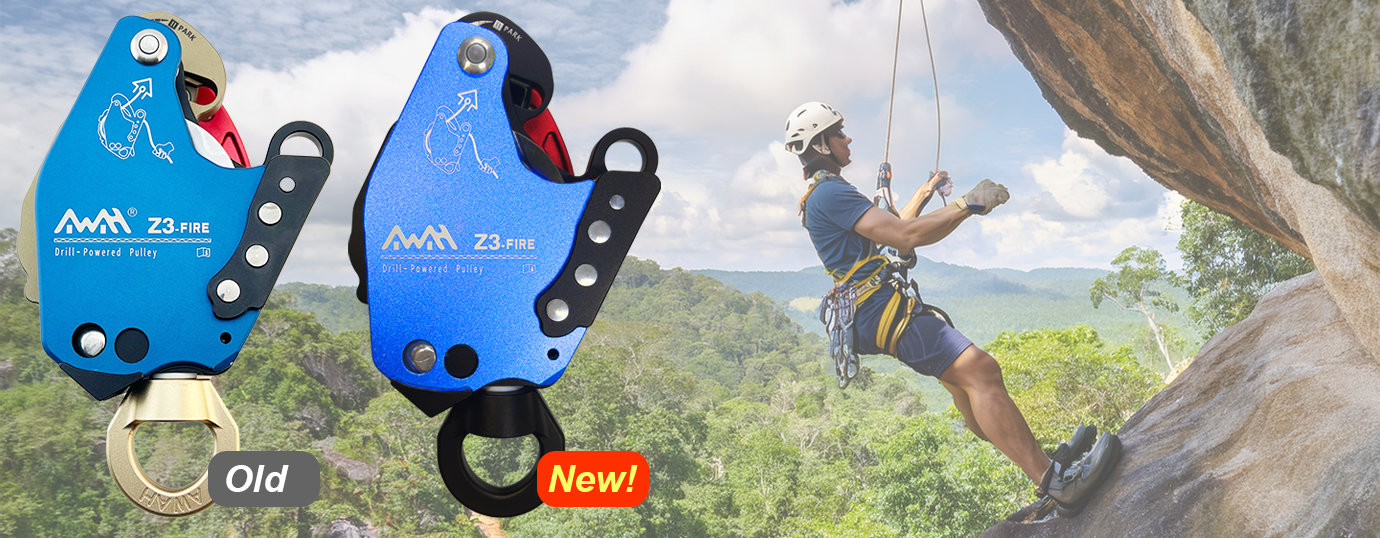

Note: The Z3 Fire color scheme has been updated. Orders will be shipped with either the new or old version at random.
Apart from the color difference, performance, functionality, and quality remain exactly the same.

FAQ

What is the maximum load capacity of the AWAH Z3 models?

The AWAH Z3 PROF supports up to 200 kg, making it ideal for compact lifting needs. The AWAH Z3 FIRE has an enhanced 285 kg capacity, suitable for heavy-duty or rescue operations.

What safety features does the AWAH Z3 offer?

The AWAH Z3 features a dual self-locking system. In case the primary gear mechanism fails, a backup lock engages within 10 cm of descent, preventing free fall. It has been tested with 285 kg loads generating up to 5.69 kN impact force (2G simulation), ensuring maximum reliability in emergencies.

How durable is the AWAH Z3?

Designed for long-term use, the AWAH Z3 includes corrosion-resistant stainless steel components and a modular structure for easy part replacement (e.g., rope wheel, gear set). It has passed rigorous impact fracture tests up to 9.08 kN, significantly reducing maintenance needs over time.

What kind of applications is the AWAH Z3 suitable for?

The AWAH Z3 is versatile enough for industrial lifting (e.g., warehouse or construction work) and emergency rescue (e.g., firefighting, high-rise evacuation). The Z3 FIRE’s 285 kg capacity and compact form factor make it highly adaptable to demanding scenarios.

Can the AWAH Z3 operate in extreme conditions?

Yes. The unit is rated IP65, providing dust and water resistance. The anti-slip rope wheel design prevents malfunction even in wet or frozen conditions (tested with frozen ropes). The reinforced shell withstands temperatures from -20°C to +60°C.

How does the AWAH Z3 compare to traditional manual hoists?

The AWAH Z3 reduces physical strain by up to 80% using a drill-powered drive, while offering precise control. Its automatic locking system eliminates the need for continuous manual braking. Compared to traditional pulley systems, it doubles lifting efficiency.

The AWAH Z3-FIRE Electric Lifting and Lowering Device is specifically designed for firefighting applications, making it ideal for the efficient and safe lifting and lowering of loads and personnel. Powered by a hand drill, it enables automatic lifting and manual lowering, making it suitable for complex and challenging operational environments. Unlike the standard Z3 model, the Z3-FIRE features a robust swivel mount at the bottom, providing added flexibility and maneuverability. The double self-locking mechanism ensures safety by automatically engaging in case of gear failure, minimizing the risk of accidental drops.

Model: Z3-FIRE
Weight: 2.37 kg
Suitable Rope: EN 1891 A rope (Diameter 10 ~ 11 mm)
Working Load: 30 kg ~ 285 kg
Transmission Ratio: 8:1
Drill Torque: 120160 N•m / 11001450 in-lbs (non-impact, brushless drill recommended)
Descent Speed: 0.5 m/s (max load) ~ 2.0 m/s (min load)
Fall Protection Height: ≤ 1 m
Dust and Water Protection: IP66
Operating Temperature Range: -15°C ~ 45°C
Lifespan: 6 years after production
